Plan 20-010
Copyright by Designer
Plan 20-010
Starting at
$1,195.00
$1,195.00
Square Feet
1693
Bedrooms
3
Bathrooms
2
Garage Stalls
2
Floors
1
Half Baths
0
Width
50'
Depth
63' 5"
Height
26' 7"
Square Feet
1693
Bedrooms
3
Bathrooms
2
Garage Stalls
2
Floors
1
Half Baths
0
Width
50'
Depth
63' 5"
Height
26' 7"
Copyright By Designer
Questions About This Plan
Do you have any specific questions about this plan? Click below to ask a designer what your curious about.
Modify This Plan
Not QUITE what you are looking for?
Get a fast, free quote to make it yours!
Features
Square Footage
Dimensions
Details
Style
Coastal Cottage, Modern Farmhouse, TransitionalOutdoor Features
Rear PorchBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Master Suite – 1st FloorKitchen and Dining
Kitchen Island, Open Floor Plan, Walk-In PantryLaundry Location
Laundry Near KitchenAdditional Rooms
Garage Type
Front EntryFoundation Type
SlabPlan Description
Imagine your family thriving in Plan 20-010, a charming home designed to create lasting memories. This single-story haven offers 1,693 square feet of comfortable living space, thoughtfully divided into three bedrooms and two bathrooms.
Picture this: an open floor plan that seamlessly connects the kitchen, dining, and living areas, creating a welcoming atmosphere perfect for shared meals and laughter.
The kitchen, the heart of the home, is a place where culinary creations are born.
The master suite provides a private retreat at the day's end located at the rear of the house.
The plan includes a split bedroom arrangement, prioritizing privacy for the master suite.
The laundry room is conveniently accessed from the master closet and mudroom.

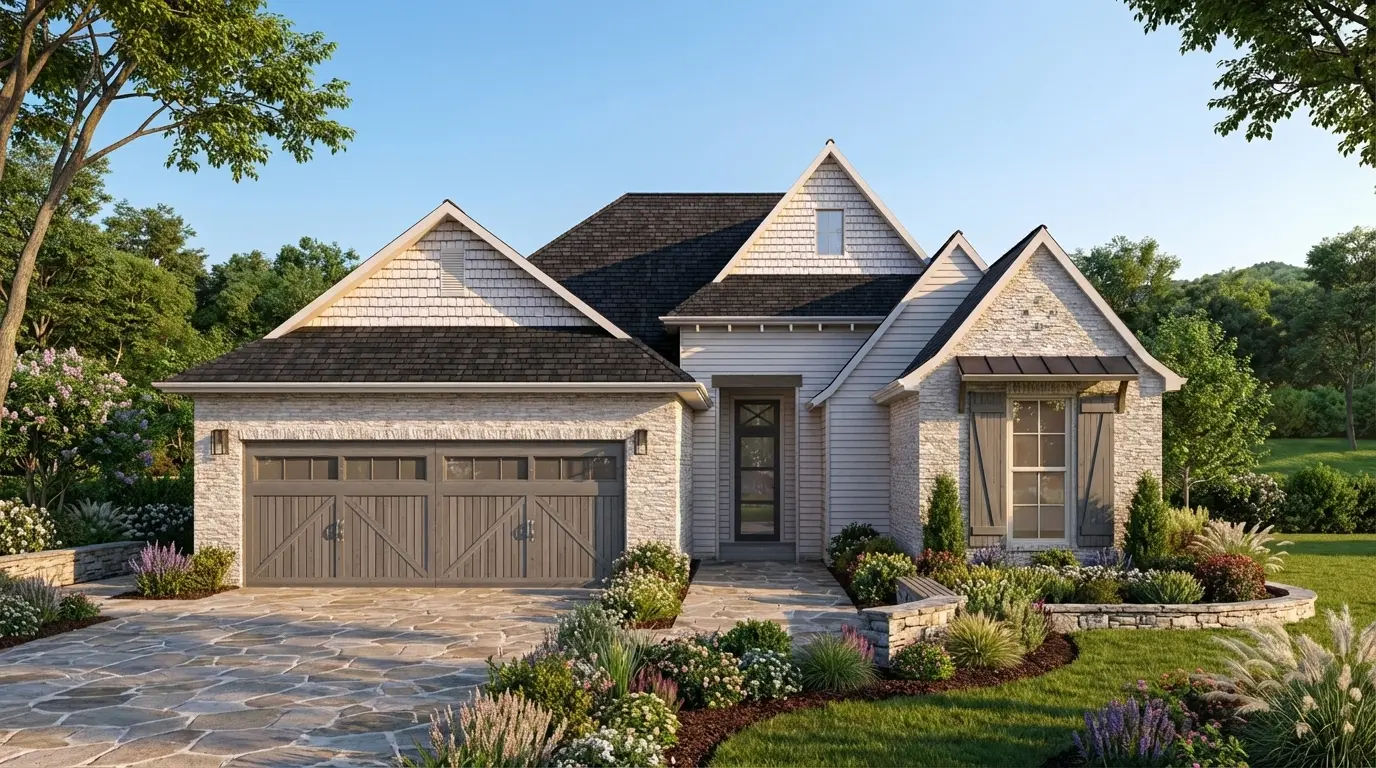

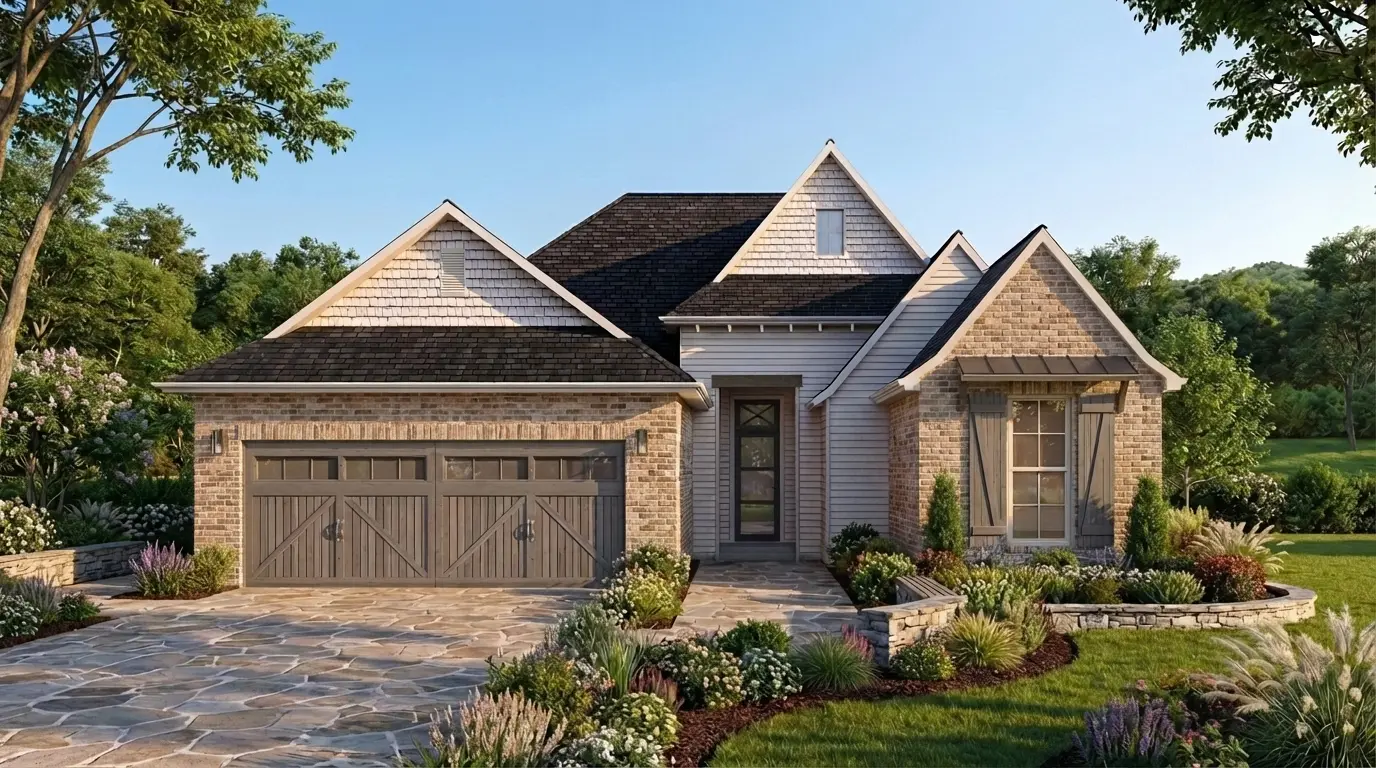

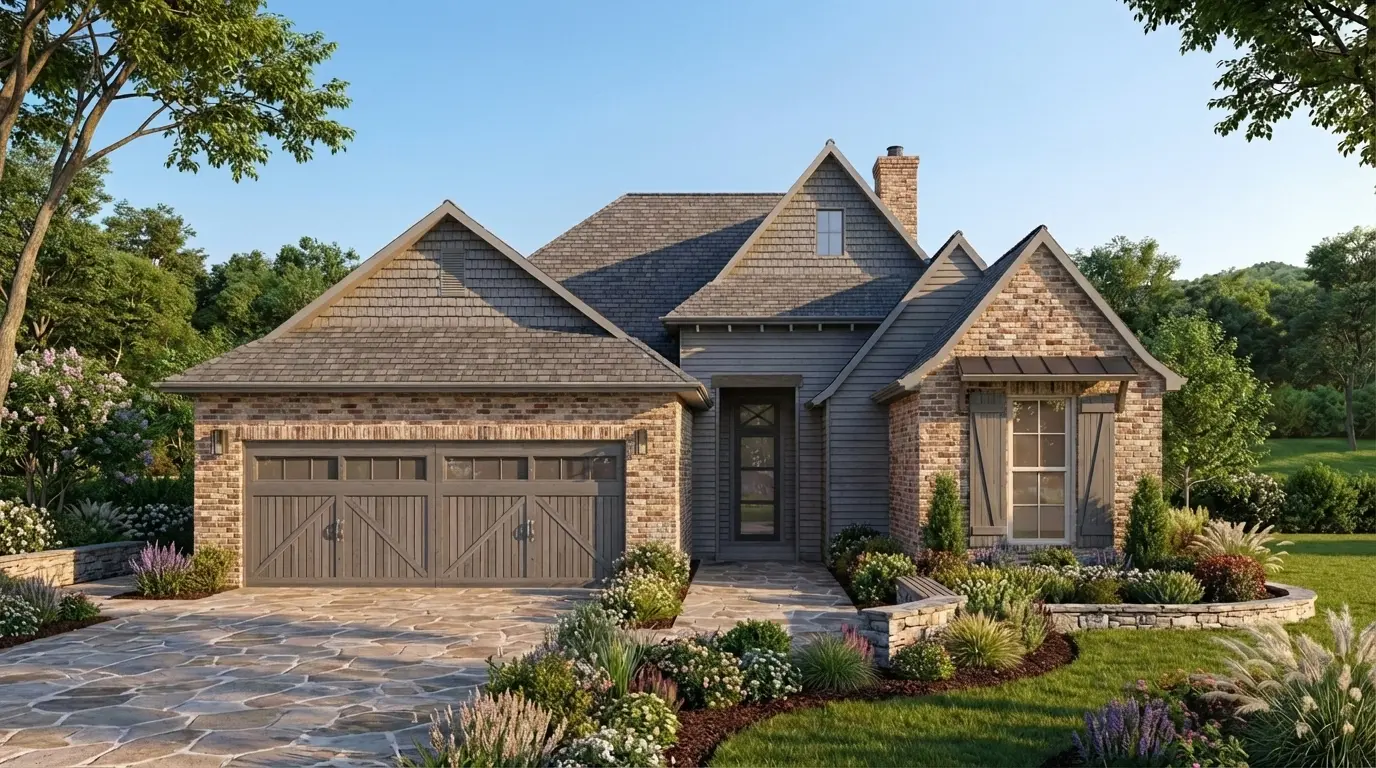

The exterior's style, a blend of Cottage, Modern Farmhouse, and Transitional, promises timeless appeal. The two-car front-entry garage provides both practicality and convenience.
With a total house square footage of 2,560 (including porches and the garage), this home offers the perfect blend of functionality and charm. More than just a house, it's a haven where family memories are made. It’s a promise of home.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
