Plan 20-041
Copyright by Designer
Plan 20-041
Starting at
$1,395.00
$1,395.00
Square Feet
3274
Bedrooms
4
Bathrooms
4
Garage Stalls
3
Floors
2
Half Baths
0
Width
83'
Depth
85' 8"
Height
28' 2"
Square Feet
3274
Bedrooms
4
Bathrooms
4
Garage Stalls
3
Floors
2
Half Baths
0
Width
83'
Depth
85' 8"
Height
28' 2"
Copyright By Designer
Questions About This Plan
Do you have any specific questions about this plan? Click below to ask a designer what your curious about.
Modify This Plan
Not QUITE what you are looking for?
Get a fast, free quote to make it yours!
Features
Square Footage
Dimensions
Details
Style
Louisiana Colonial, SouthernOutdoor Features
Front Porch, Rear Porch, Outdoor FireplaceBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Master Suite – 1st Floor, Master Suite – Sitting Area, Jack and Jill BathroomKitchen and Dining
Breakfast Nook, Kitchen Island, Kitchen Window, Open Floor Plan, Walk-In Pantry, Formal DiningLaundry Location
Laundry Near Mud Room, Laundry Near KitchenAdditional Rooms
Bonus Room, Mud RoomGarage Type
Side EntryFoundation Type
SlabPlan Description
Imagine waking up in your spacious Master Suite, complete with a sitting area – a personal sanctuary within your stunning new home, Plan 20-041. This Louisiana-style home boasts 3274 square feet of heated living space, spread across two floors. Picture this: a grand total of 4 bedrooms and 4 bathrooms cater to the needs of a growing family or offer ample space for guests.
The heart of the home is an open floor plan, seamlessly connecting the kitchen, a cozy breakfast nook, and the living room. Imagine preparing meals on a large kitchen island, while enjoying the natural light streaming in through a charming kitchen window. A walk-in pantry will keep things organized and clutter-free. And for more formal occasions, a separate formal dining room awaits.

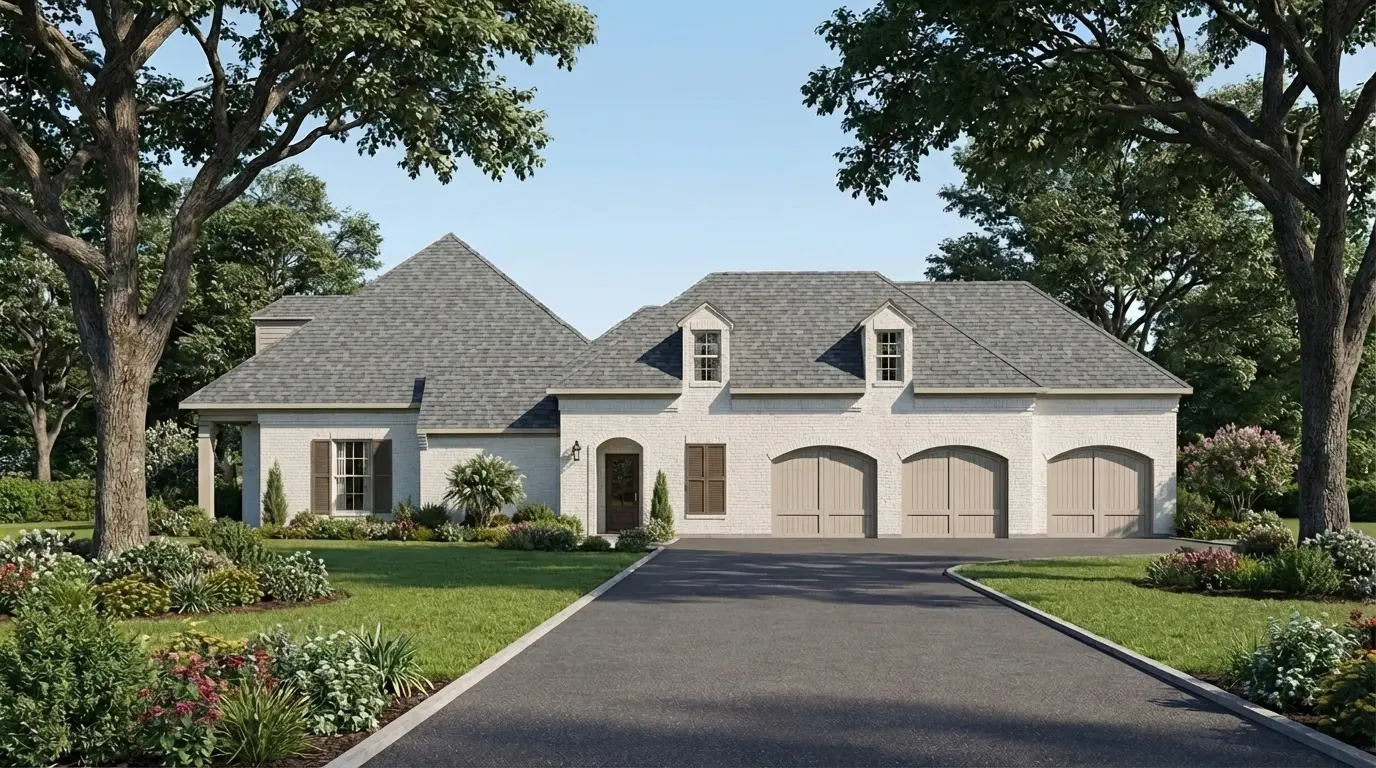

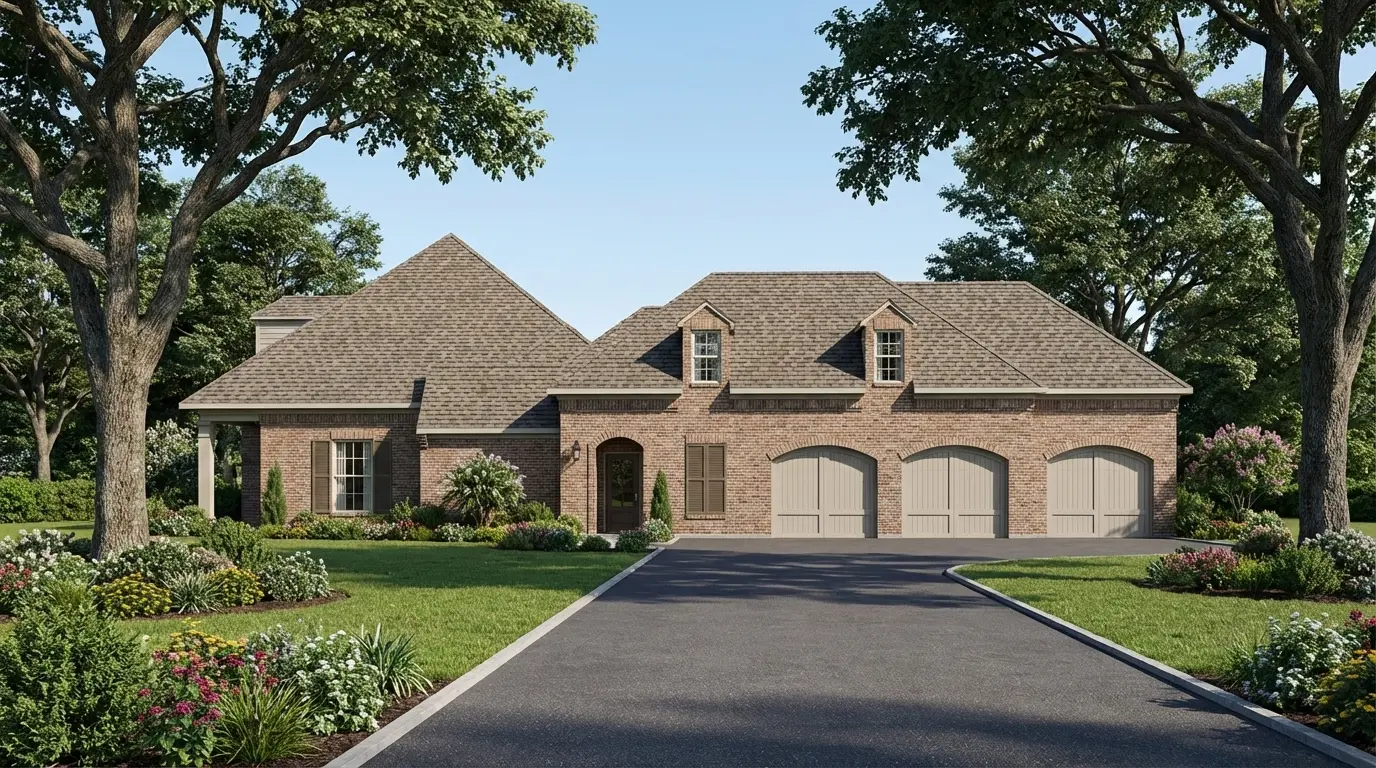

Beyond the everyday living spaces, discover added luxuries. A convenient mudroom helps keep the house tidy, while a bonus room upstairs offers endless possibilities – a home office, a playroom, or a quiet retreat. Three-car side entry garage provides plenty of space for vehicles and storage.

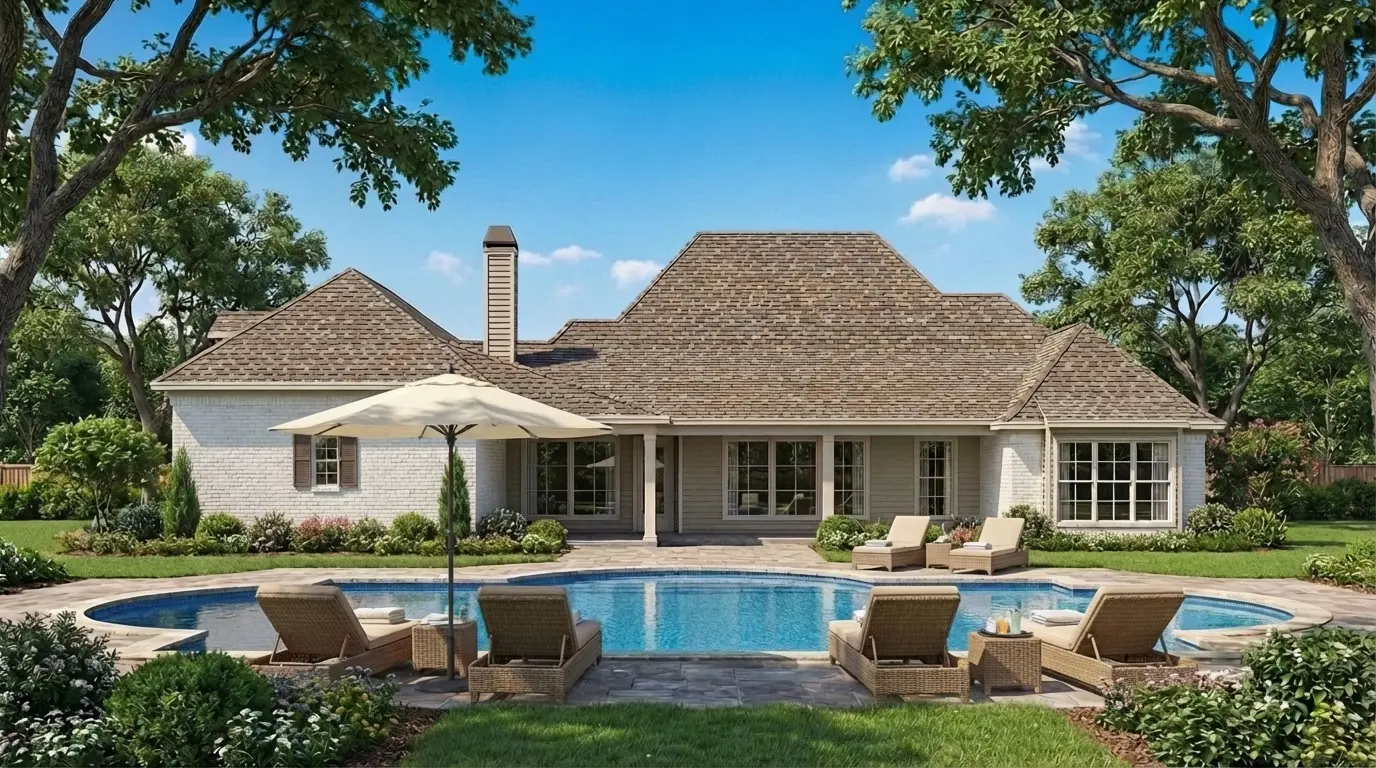

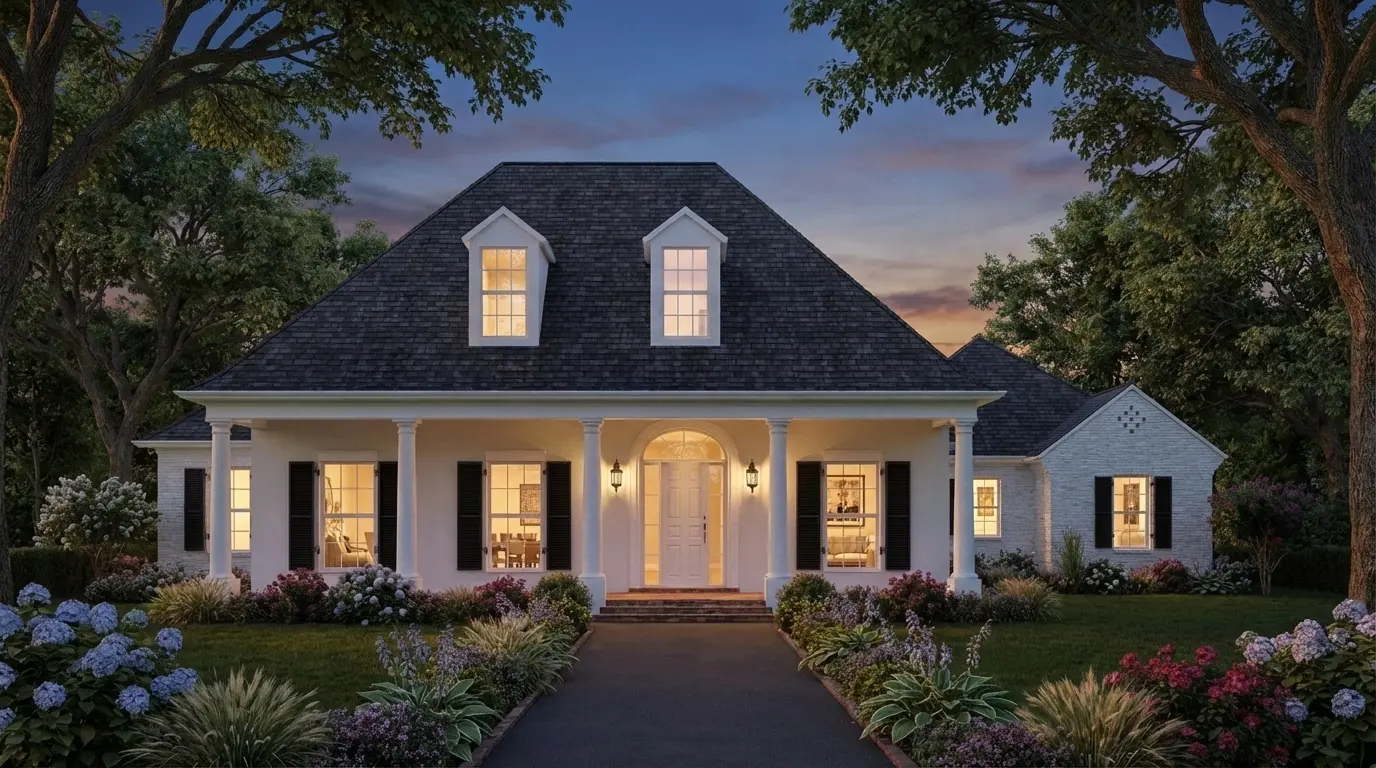

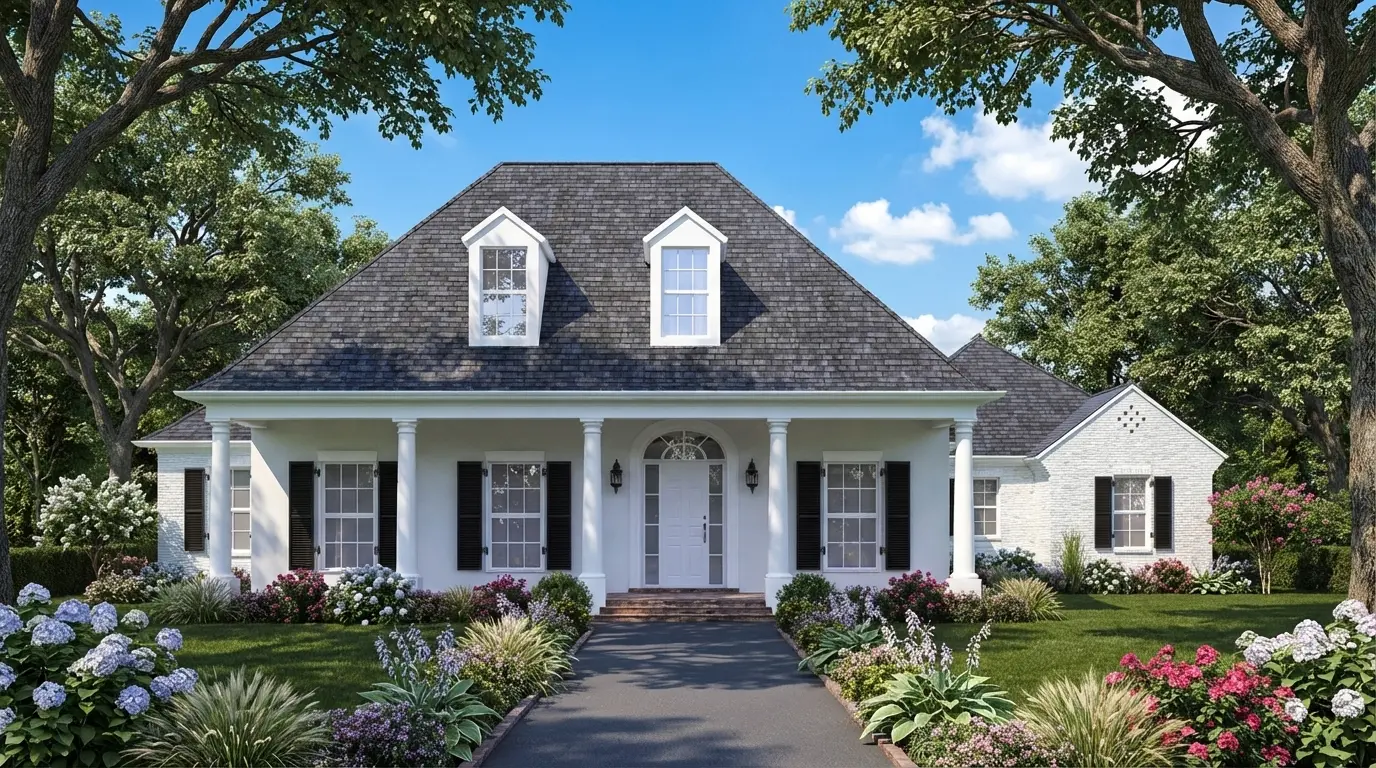

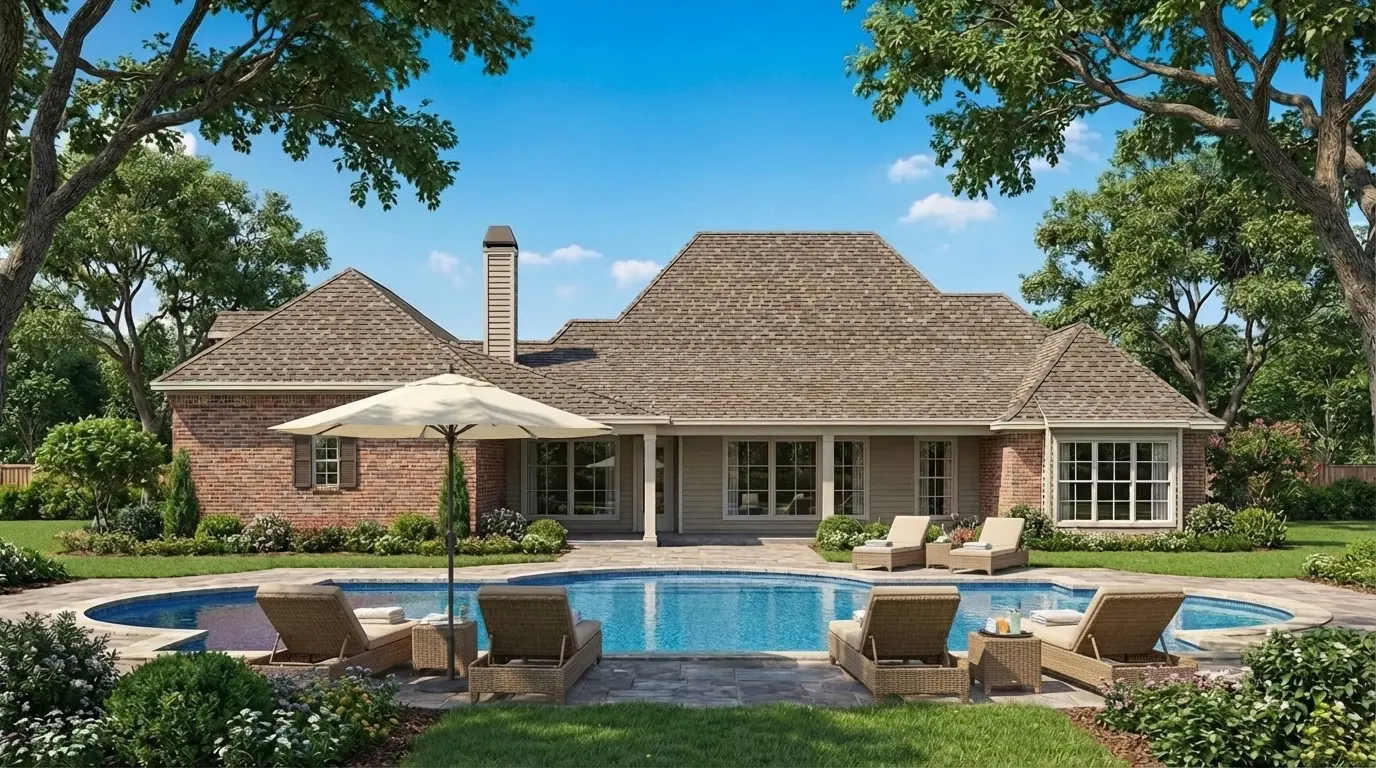

Step outside and envision yourself relaxing on either the front or rear porch, perhaps enjoying the warmth of the outdoor fireplace as the day winds down. The exterior's Southern charm is reflected in the roof pitch, complementing the home's elegant Louisiana architectural style.
This home includes a thoughtfully designed split bedroom layout with the Master Suite situated at the rear for added privacy. There is the convenience of a Jack and Jill bathroom connecting two other bedrooms – ideal for children. Ceiling heights ranging from 9' to 11' create an airy and spacious atmosphere throughout the entire home.
With its impressive 83ft x 85ft 8in footprint, Plan 20-041 offers unparalleled space and style. Don't just dream of your ideal home; make it a reality.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
