Plan 23-019
Copyright by Designer
Plan 23-019
Starting at
$1,250.00
$1,250.00
Square Feet
3667
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
2
Half Baths
1
Width
75' 4"
Depth
74' 2"
Height
Height not available
Square Feet
3667
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
2
Half Baths
1
Width
75' 4"
Depth
74' 2"
Height
Height not available
Questions About This Plan
Do you have any specific questions about this plan? Click below to ask a designer what your curious about.
Modify This Plan
Not QUITE what you are looking for?
Get a fast, free quote to make it yours!
Features
Square Footage
Dimensions
Details
Style
EuropeanOutdoor Features
Rear PorchBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Master Suite – Sitting AreaKitchen and Dining
Breakfast Nook, Keeping Room, Open Floor Plan, Formal DiningLaundry Location
Laundry Near KitchenAdditional Rooms
Bonus Room, DenGarage Type
Side EntryFoundation Type
Slab, Crawl Space, BasementPlan Description
Plan 23-019 could be the house plan you've been searching for. With 4 bedrooms, 3.5 bathrooms, and a 3-car garage, this 3,667 square foot home combines European charm with practical living space.
Exterior: The home welcomes you with a traditional European-inspired design, featuring a brick facade, a steeply pitched shingle roof, and a central dormer that adds architectural interest. Stone accents grace the lower half of the entry gable, complementing the rectangular windows.
First Floor: As you step through the two-story foyer, notice the dining room (12'3" x 14'0") to your right, perfect for family gatherings. Straight ahead, the vaulted living room (18'2" x 15'6") extends upwards to the second story, creating a dramatic and airy atmosphere. To the left, discover the master suite and a secondary bedroom. The master bedroom (15'8" x 15'6") features an 11-foot tray ceiling and a sitting area (10'4" x 4'0") where you can unwind. The master bathroom and walk-in closet are directly connected, creating a private retreat. Bedroom 2 (12'8" x 12'6") is conveniently located off the foyer with easy access to bath 2. To the right of the living room, the kitchen flows into a breakfast area and then into the family room (16'4" x 18'0"), creating a central hub for everyday living. The family room provides access to the 3-car garage through a utility room, keeping things organized. A covered porch is accessible from both the master bedroom and the living room, perfect for enjoying the outdoors.

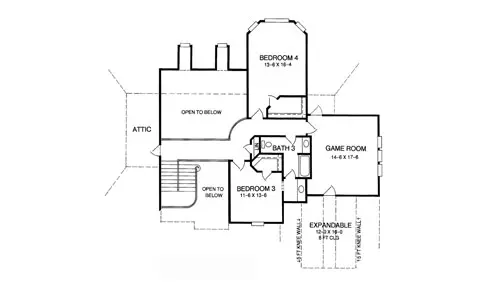

Second Floor: Upstairs, an open area overlooks the living room and foyer below. Bedrooms 3 (11'6" x 13'6") and 4 (13'6" x 16'4") share bath 3, while a game room next to bedroom 3 offers space for recreation. An expandable room provides additional flexibility.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
